Introduction
Have you ever woken up late and, when taking your shower, wanted to know exactly how much time has passed? Of course, you can use a watch, but with this (very simple) automation, you will have a different, much cooler and more modern way to do it. In this article, we will build step by step, using Home Assistant and Node-Red, an automation using only simple Node-Red blocks. We will start with the lighting control, then we will add a notification to alert you if the light has been on for too long.
Objective
In this section, I will show you what we are going to build. Below is a simple diagram illustrating the overall behavior.
The first step is to check whether the light is on. If not, nothing happens. Otherwise, we turn on a white light (maximum brightness, 5000K). Then, we detect whether someone is taking a shower. For this, you can use a presence sensor, but in my case I will use a humidity sensor. If you were considering buying a presence sensor just to detect showers, keep in mind that it is not necessary.

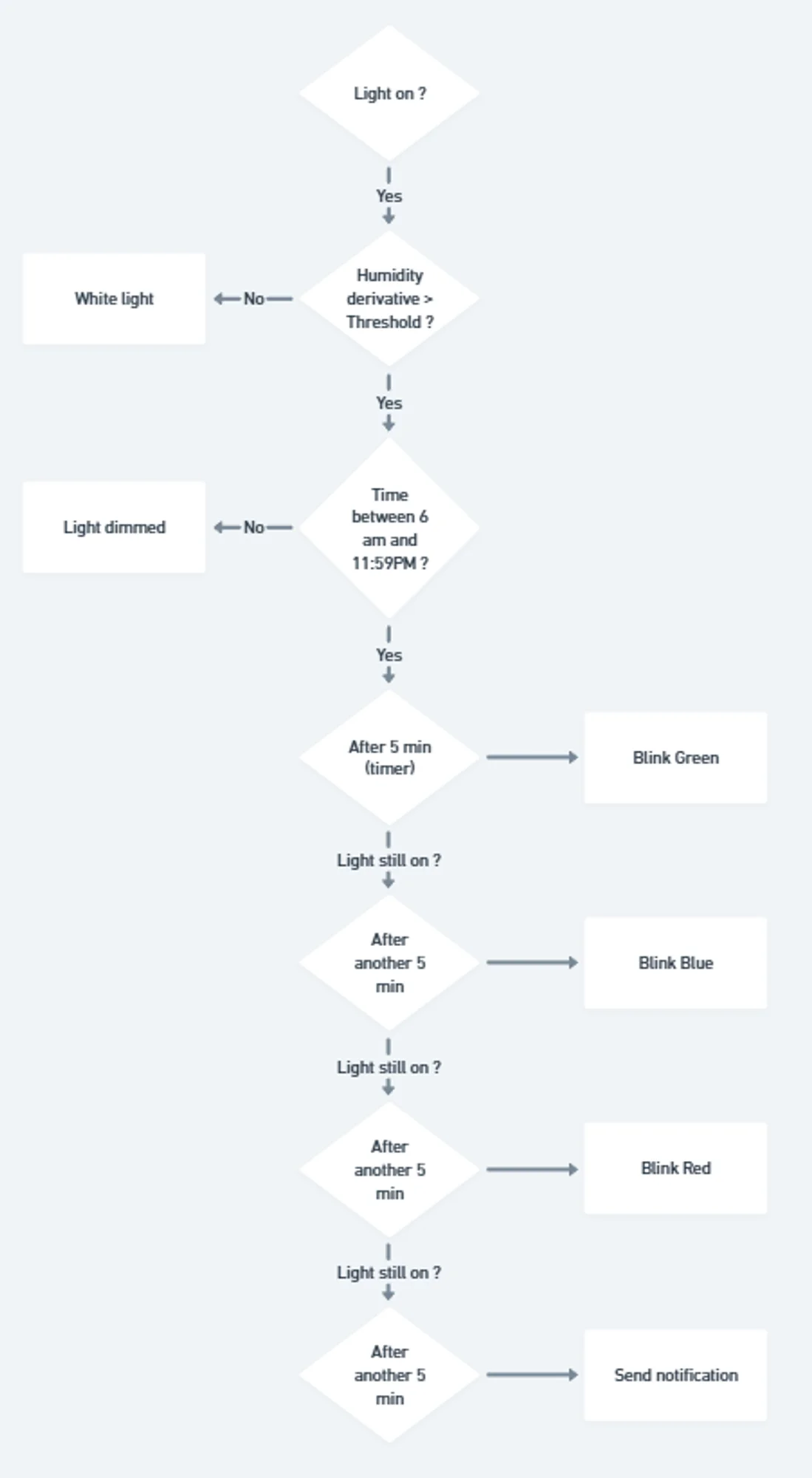

Next, the automation will trigger light flashes in different colors every 5 minutes. After 3 flashes, if the light is still on, it likely means someone forgot to turn it off. In that case, a notification will be sent to your phone. This notification will include actions such as turning off the light remotely, which is useful when you are not at home.
With this automation, you will have a visual and practical way to track your shower duration and avoid forgetting to turn off the light.
Lighting control

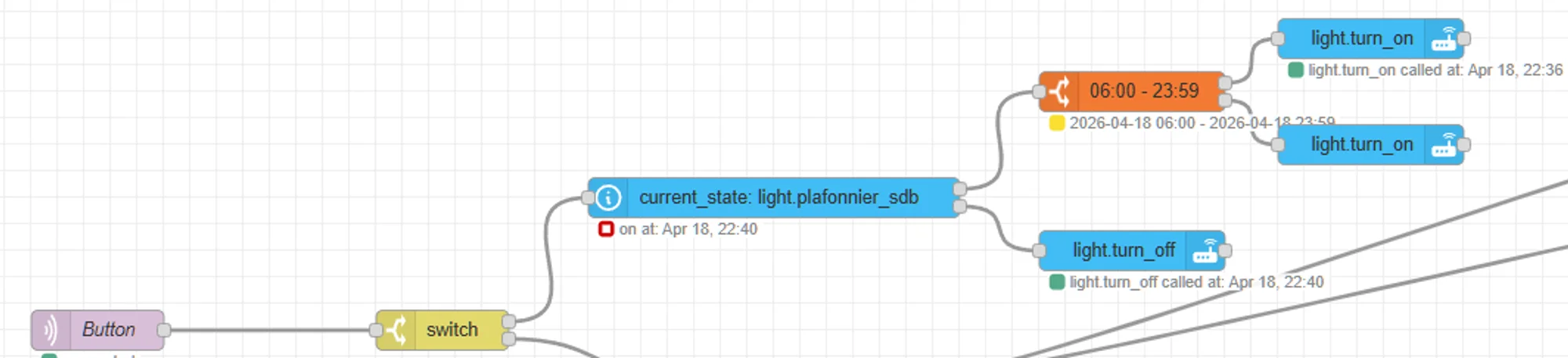

In my case, I use an Ikea button running with Zigbee and Zigbee2mqtt. It is integrated into the automation so that when pressed, it can either trigger a normal lighting mode (white light, maximum brightness) or a dimmed light at night to avoid glare (which is more comfortable when waking up during the night to go to the bathroom):

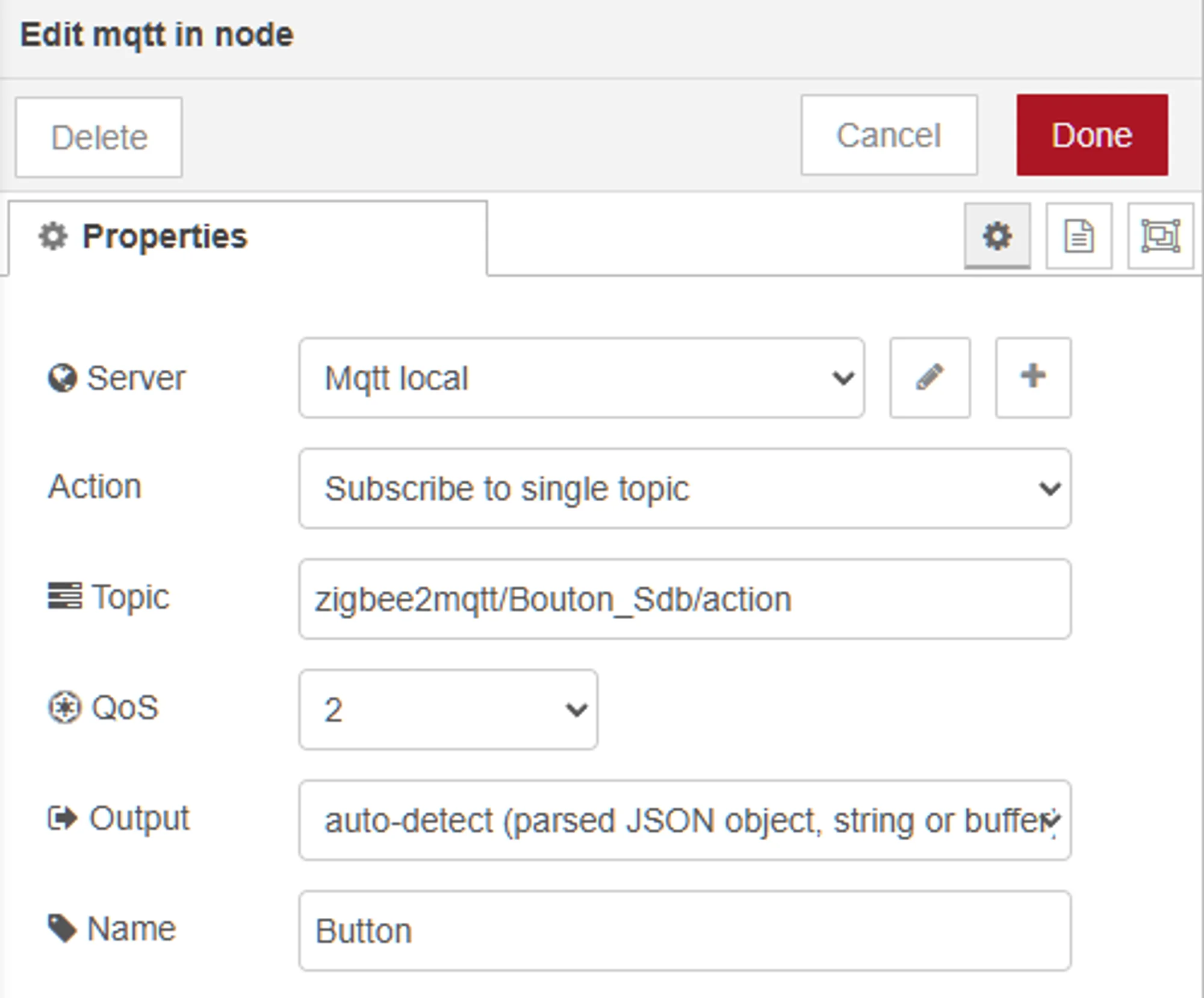

To find the button actions, you can use MQTT Explorer to identify the topic and associated action, then configure them in the node as shown below.
If the light is already on, pressing the button again will simply turn it off. Once this logic is set up, we can move on to the shower detection part.
Shower detection
In this section, we will handle shower detection. As mentioned earlier, if you have a presence sensor you can skip this step. With a humidity sensor, we will use the derivative of the value to detect rapid changes caused by water vapor in the bathroom.

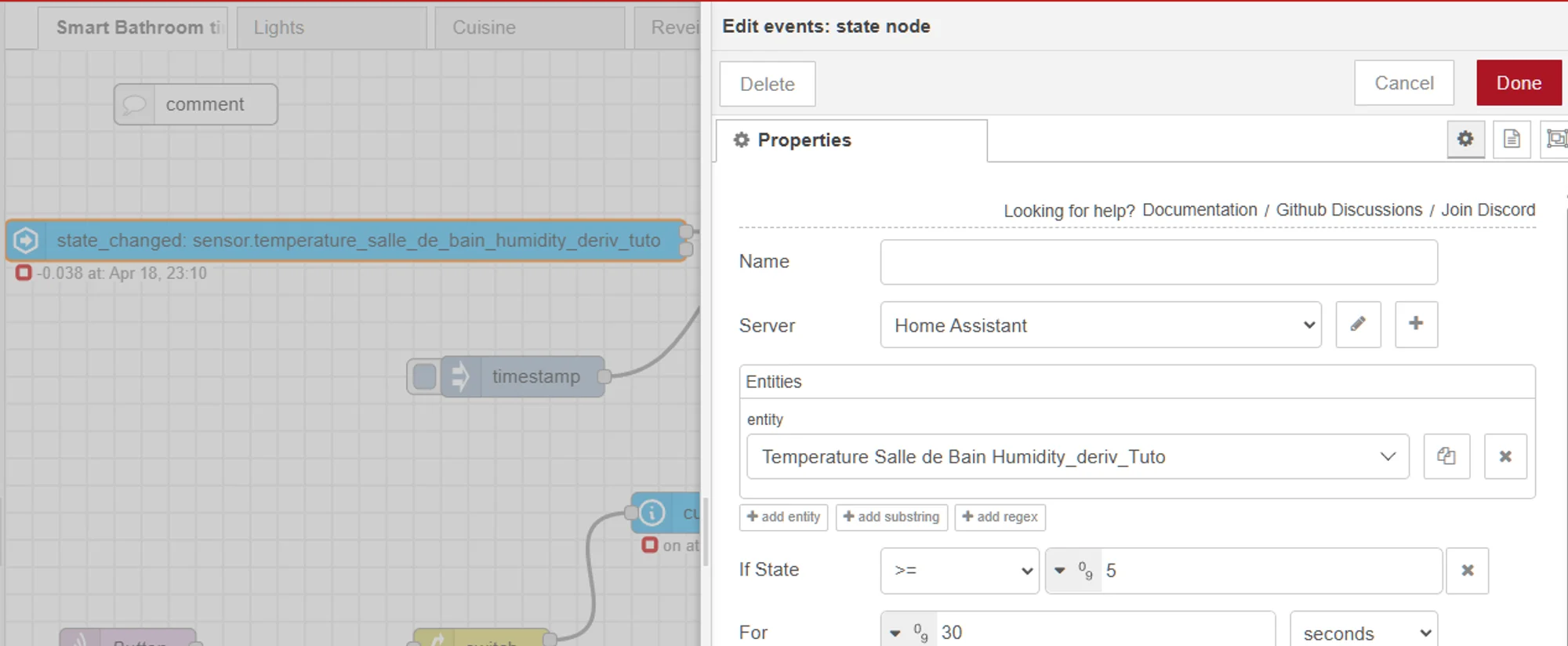

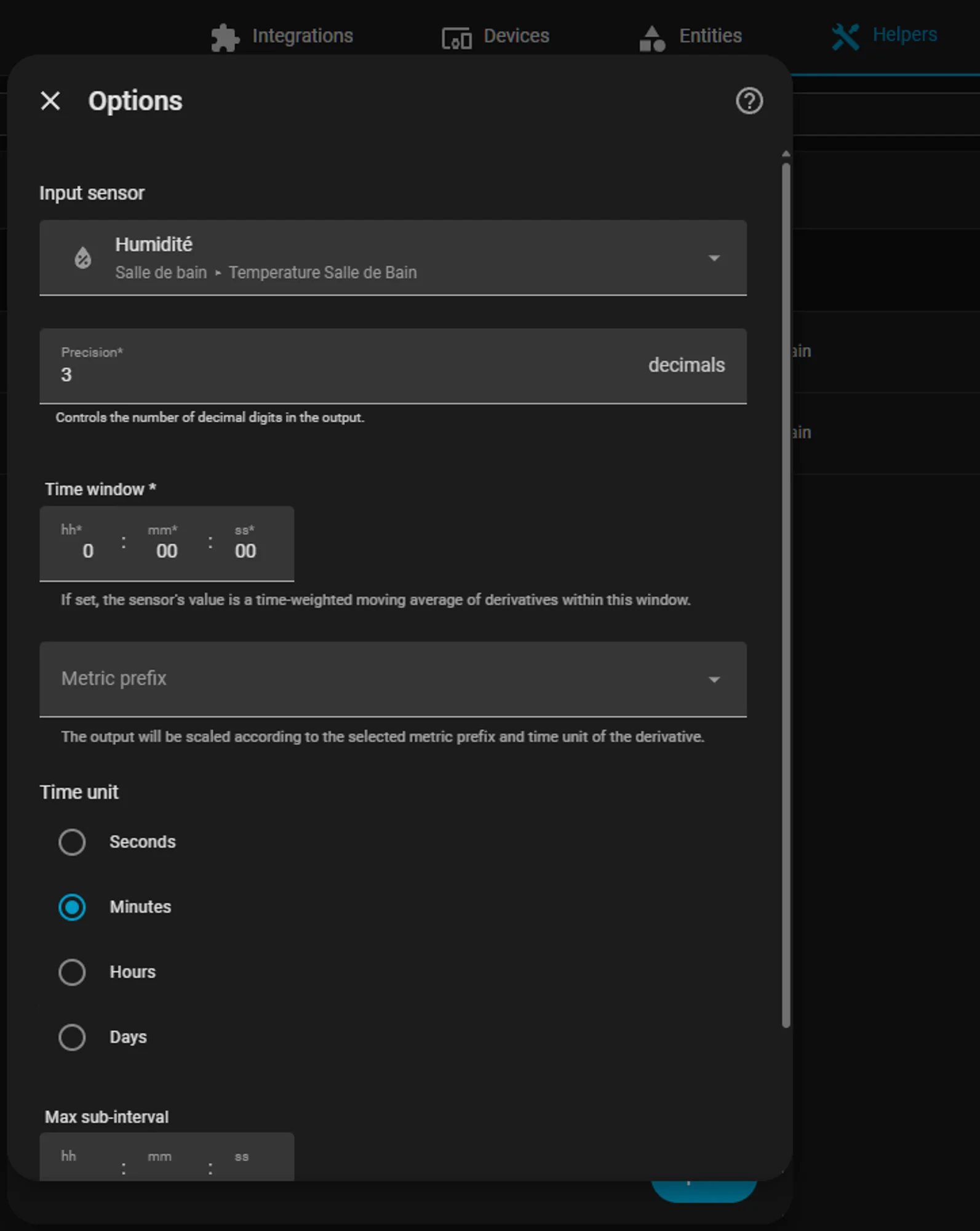

You can create this derivative in “Settings”, then “Devices & Services”, in the “Helpers” tab. Enter a name, select your humidity sensor, and choose the desired precision (for example 3). The time unit can be seconds or minutes depending on your preference. Other options are not suitable for this use case.

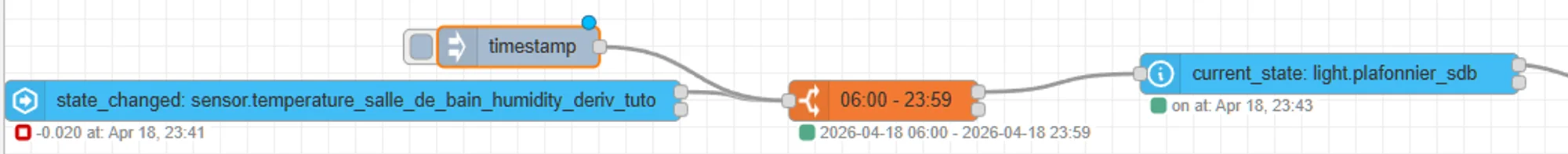

Once the derivative is configured, import it into Node-Red and define a trigger threshold as shown below.
This threshold depends on your bathroom, your environment, and especially the sensor placement. Ideally, place the sensor above the shower but not too close. To find a reliable value, record a shower session and observe the derivative in the “History” dashboard. Choose a value above the noise level. If you get too many false detections, increase the threshold or duration, and if the automation does not detect showers well enough, simply decrease them.
When a shower is detected, we check that we are within the correct time range (no maximum brightness at night and no flashing) before continuing the automation.
An “inject” node can also be added to test your automation.
Counter management
To handle the flashes, we will use a trigger node and a counter that increments every 5 minutes. Each counter value triggers a flash with a different color.

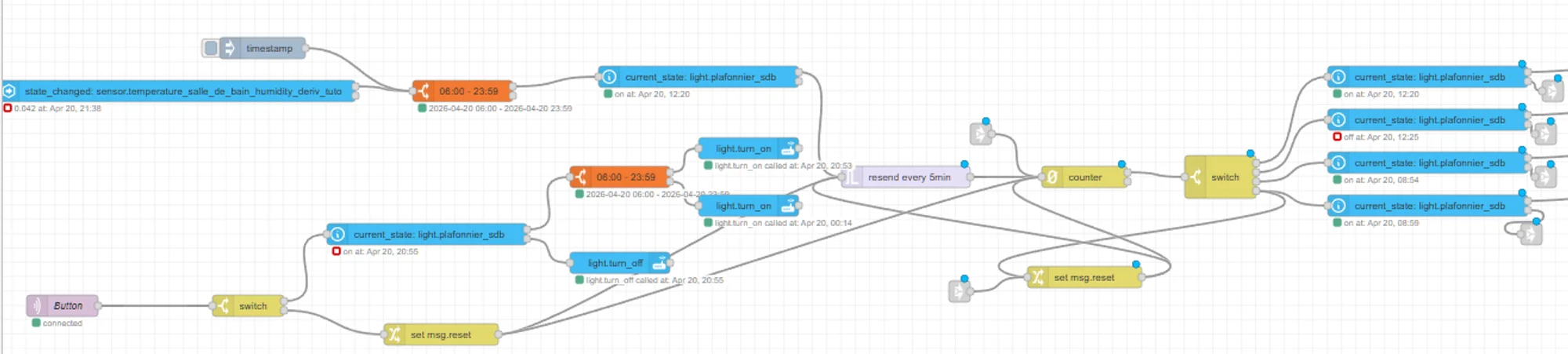

Below, to make things easier to understand, you will find the full section related to activation and counter management, since all elements are connected. Feel free to zoom into different parts if needed.
You must make sure to properly reset the trigger and the counter, otherwise the counter may get stuck. For example, when the counter reaches 4, it must be reset to start again from 1. The same applies when the light is turned off.

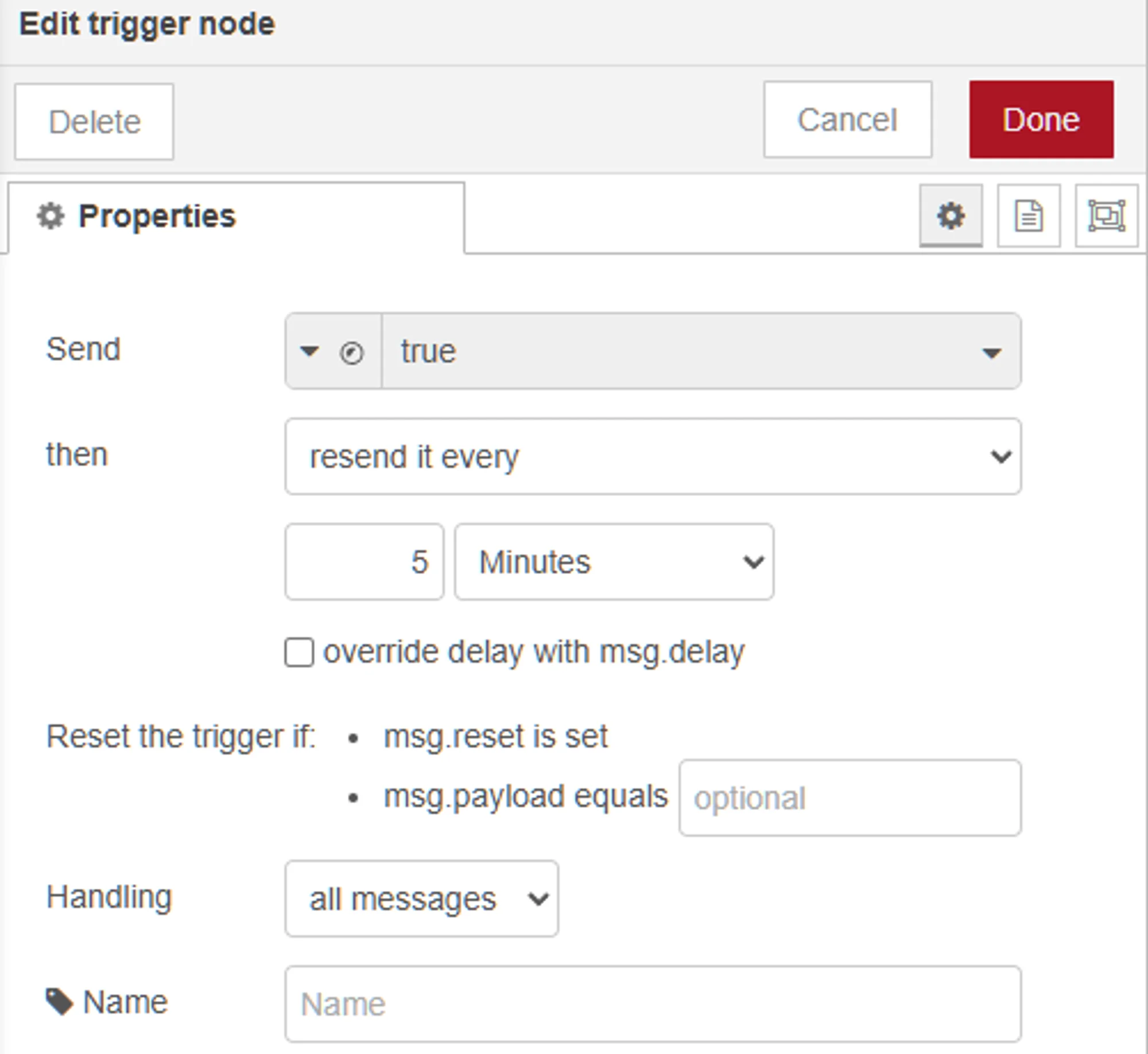

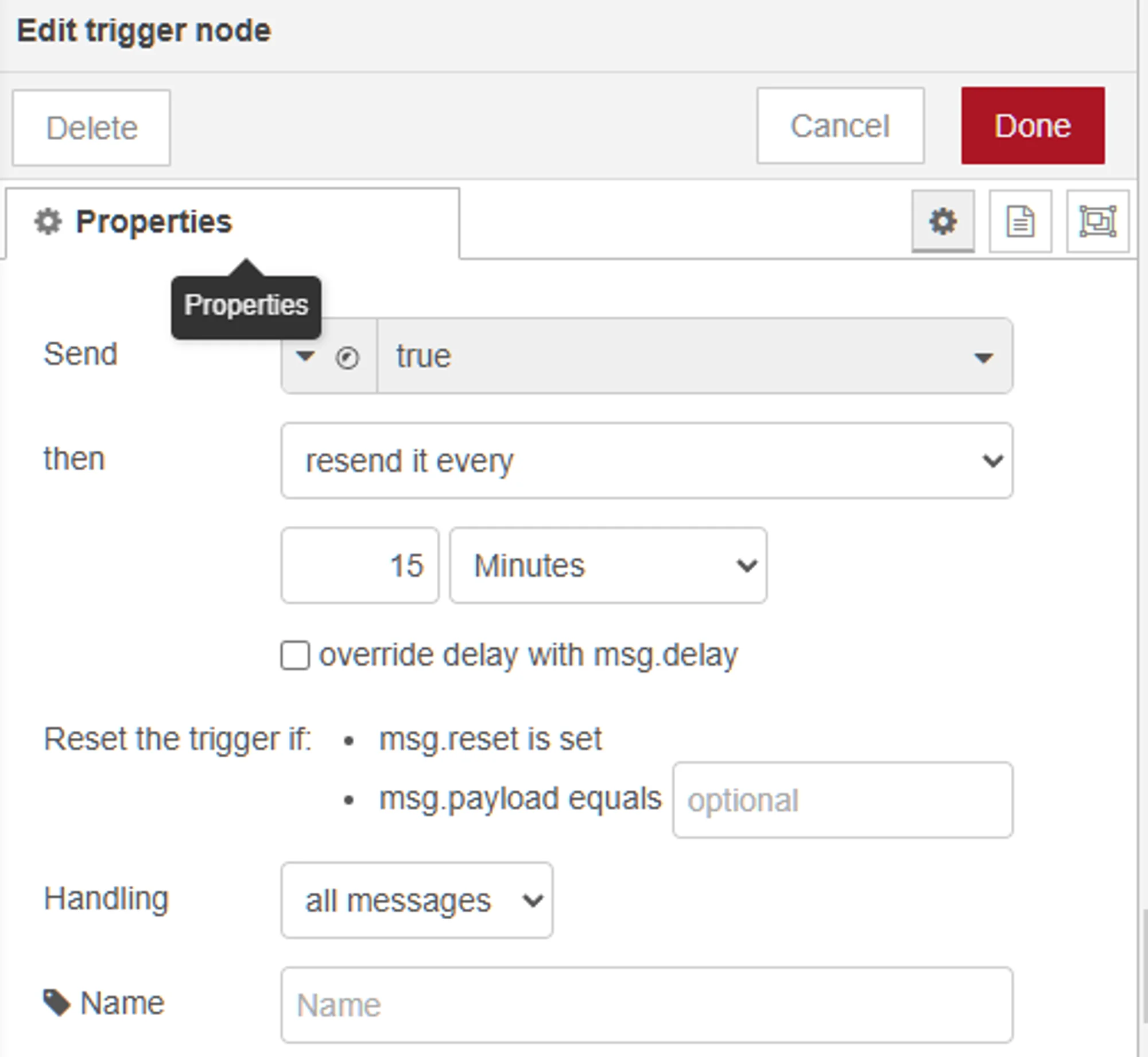

For the trigger, simply send a boolean set to true and resend it every 5 minutes as long as the light is on and a shower has been detected.
The trigger must also be reset when the counter reaches its limit or if the light is turned off.

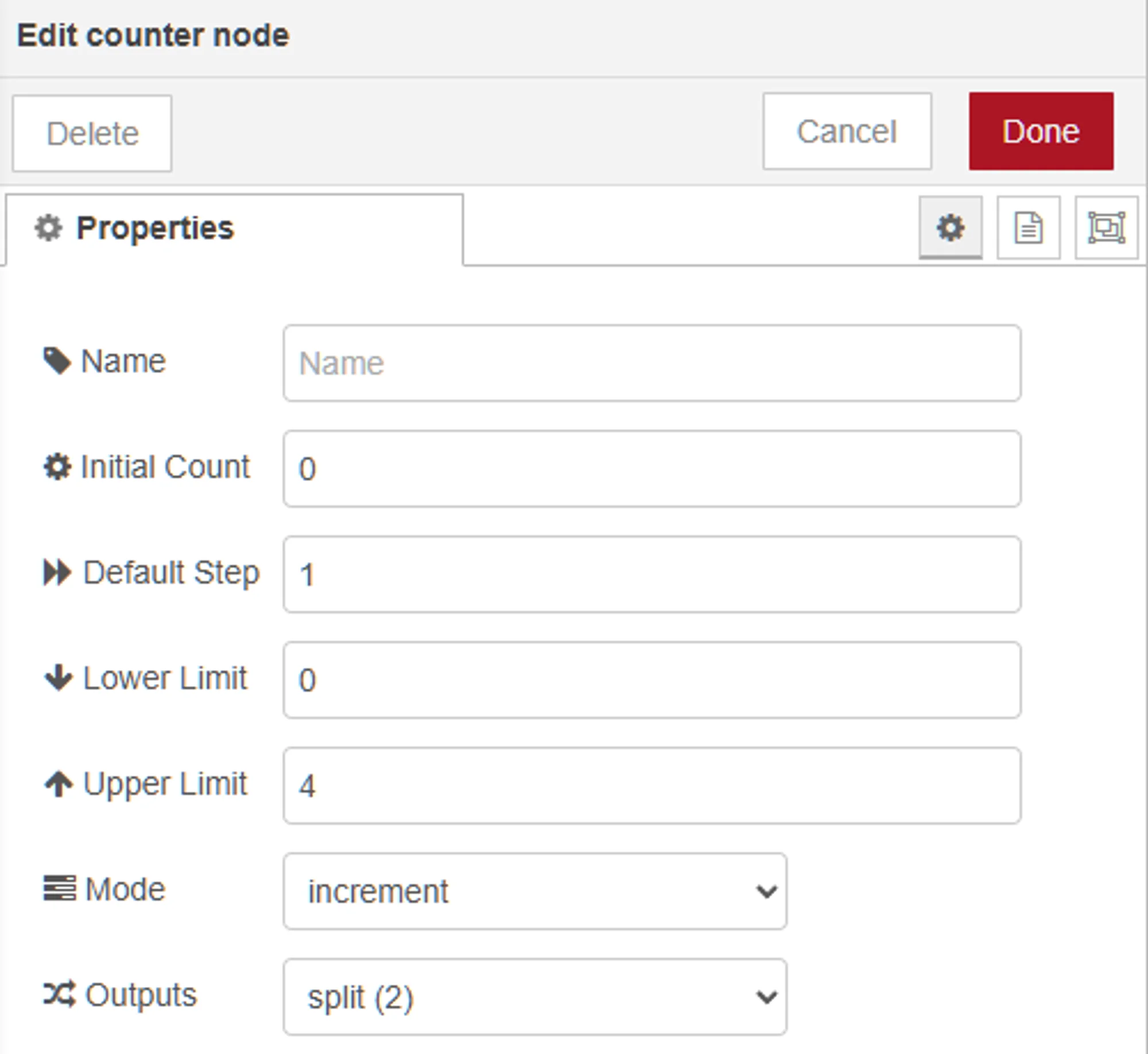

For the counter, select the “increment” mode and enable both outputs.
If you want more colors, simply increase the upper limit of the counter.

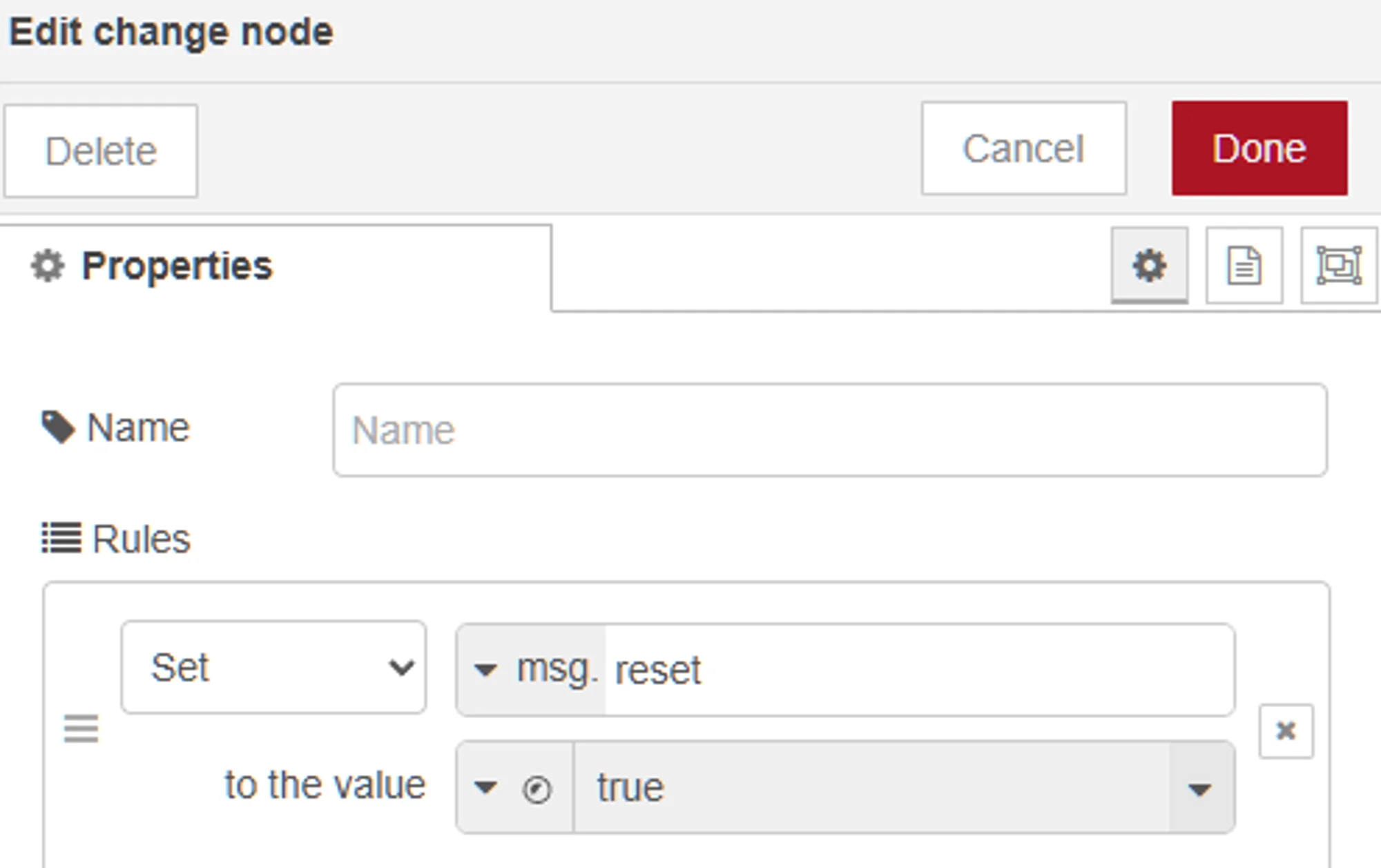

For the counter reset options, you need to send a boolean set to “true” when triggered:
The counter reset is triggered when the light is turned off or when the counter limit is reached, so that when the light is turned back on, the automation starts again from its initial state.
Once this part is correctly set up, we can move on to the flash management.
Flash management
If you made it this far, you have already completed the hardest part. Here, we will manage the light flashes sent every 5 minutes to notify the user.
The principle is simple: each counter value corresponds to a flash of a specific color. In this tutorial, we use primary colors (red, green, blue), but you can choose any colors you like.

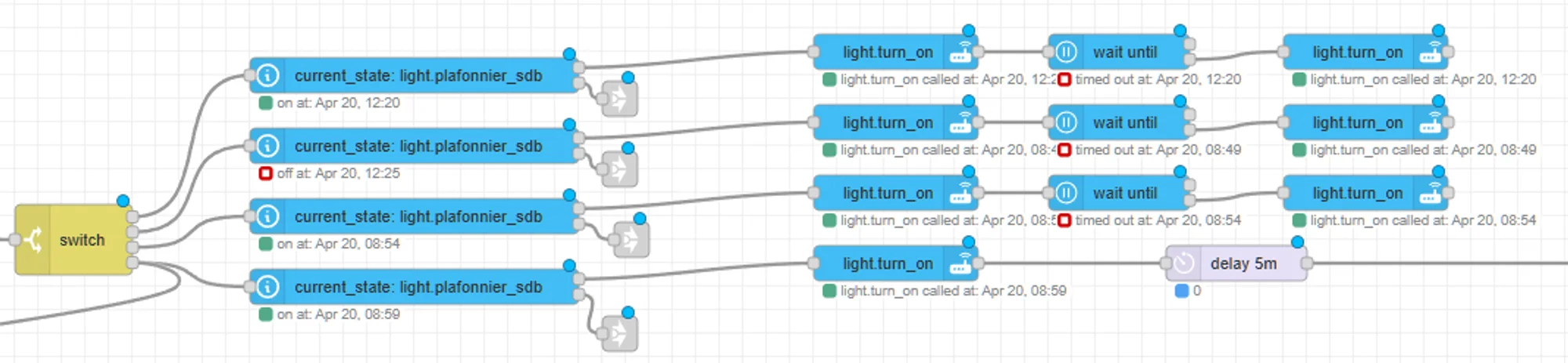

Below is the full flash management:
In each branch, we first check that the light is still on, then we change the color:

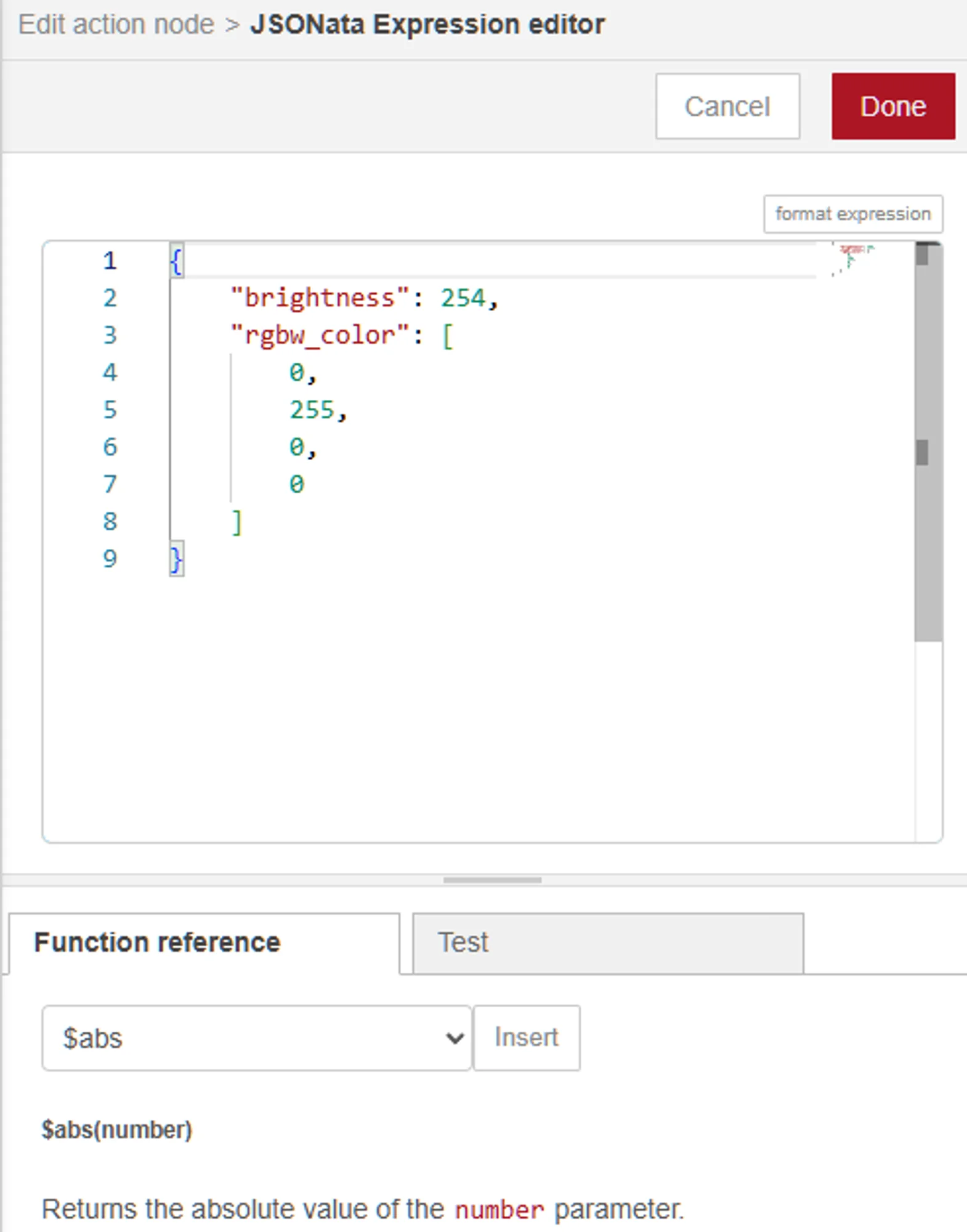

In the action node, add the corresponding configuration in “Data”, for example for green: [0, 255, 0, 0]. Then duplicate this branch for blue [0, 0, 255, 0] and red [255, 0, 0, 0]. The last branch keeps the red color before sending the notification.
How to send a notification ?
When the counter reaches its upper limit, we keep the light red, and if it is still on, it likely means someone forgot to turn it off. In this case, we will send a notification with actions.
We use a “delay” node set to 5 minutes, then a trigger node that repeats the notification every 15 minutes.

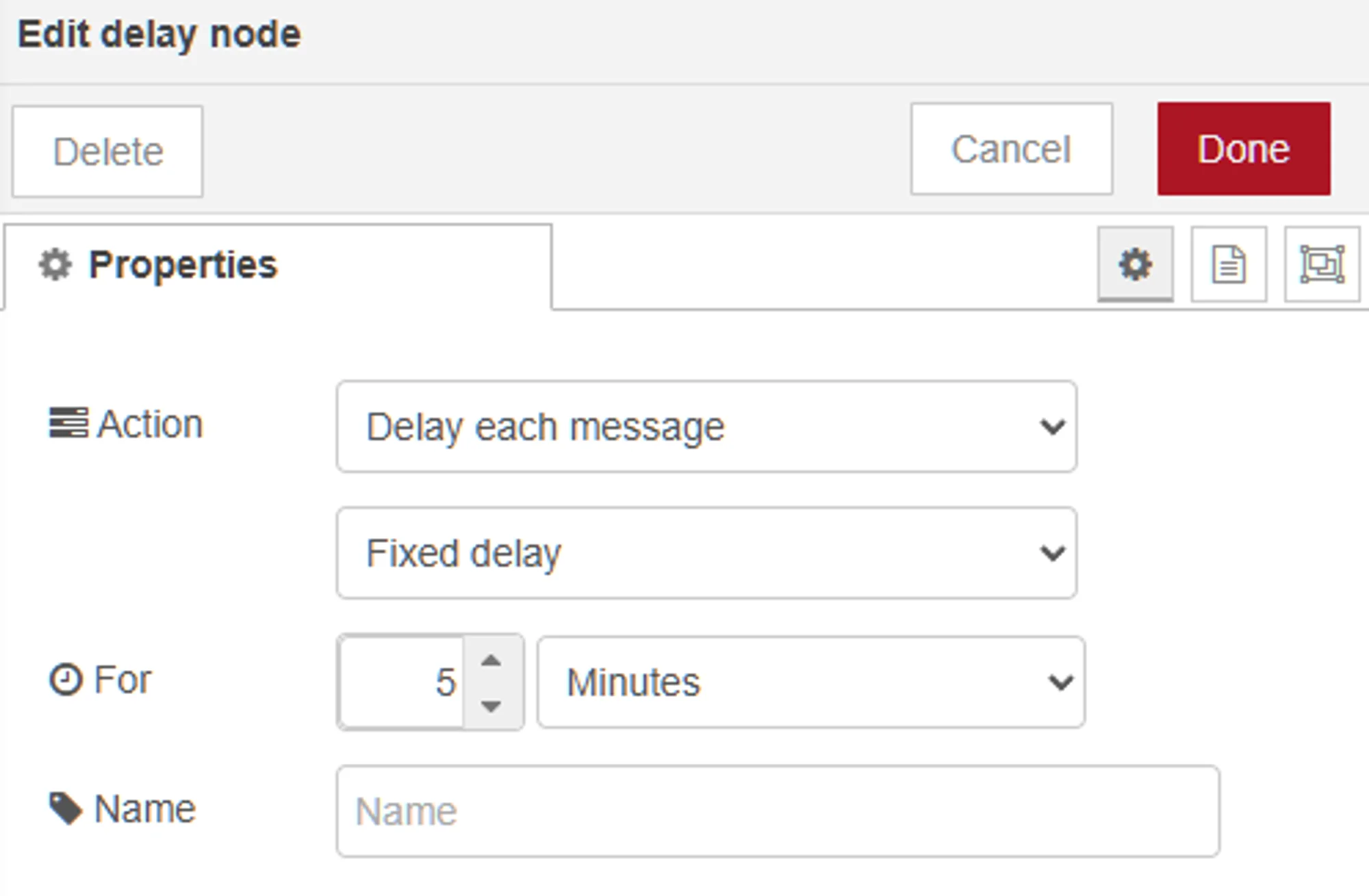

For the delay node, simply select the options as shown below:
For the trigger node, it is configured the same way as above except it repeats every 15 minutes:

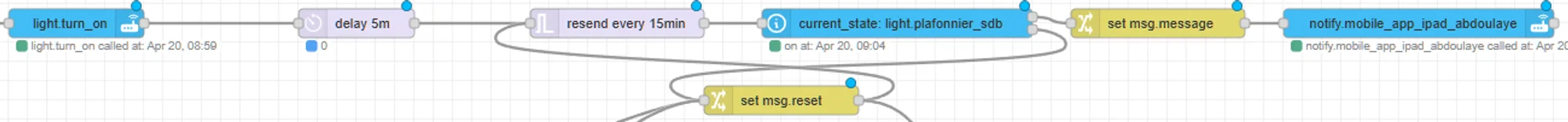

Before sending the notification, we check whether the light has been turned off in the meantime. If it has, we send a reset to the trigger to cancel future notifications.

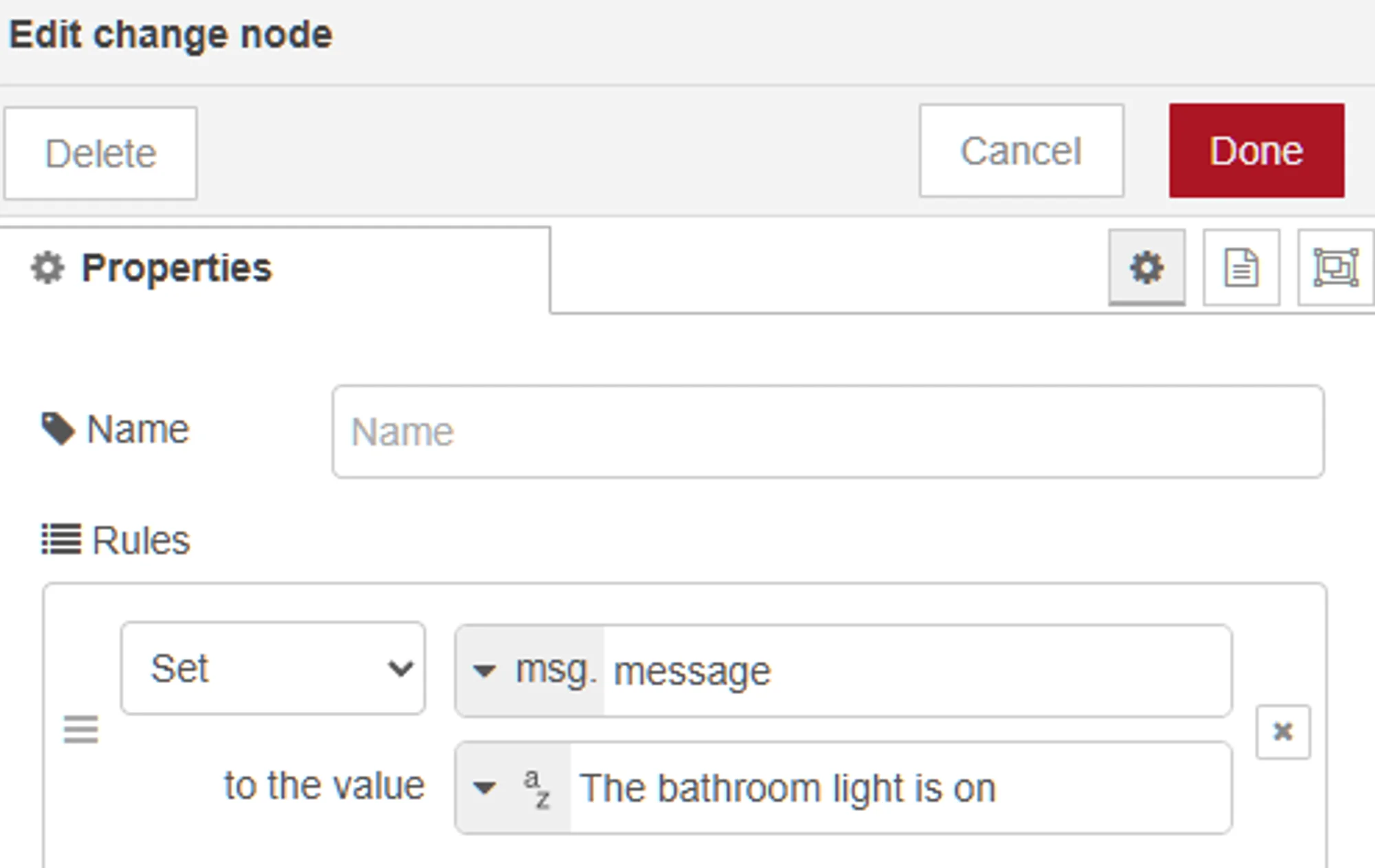

If the light is still on, we define the notification message using a change node in msg.message, then send the notification using an action node.

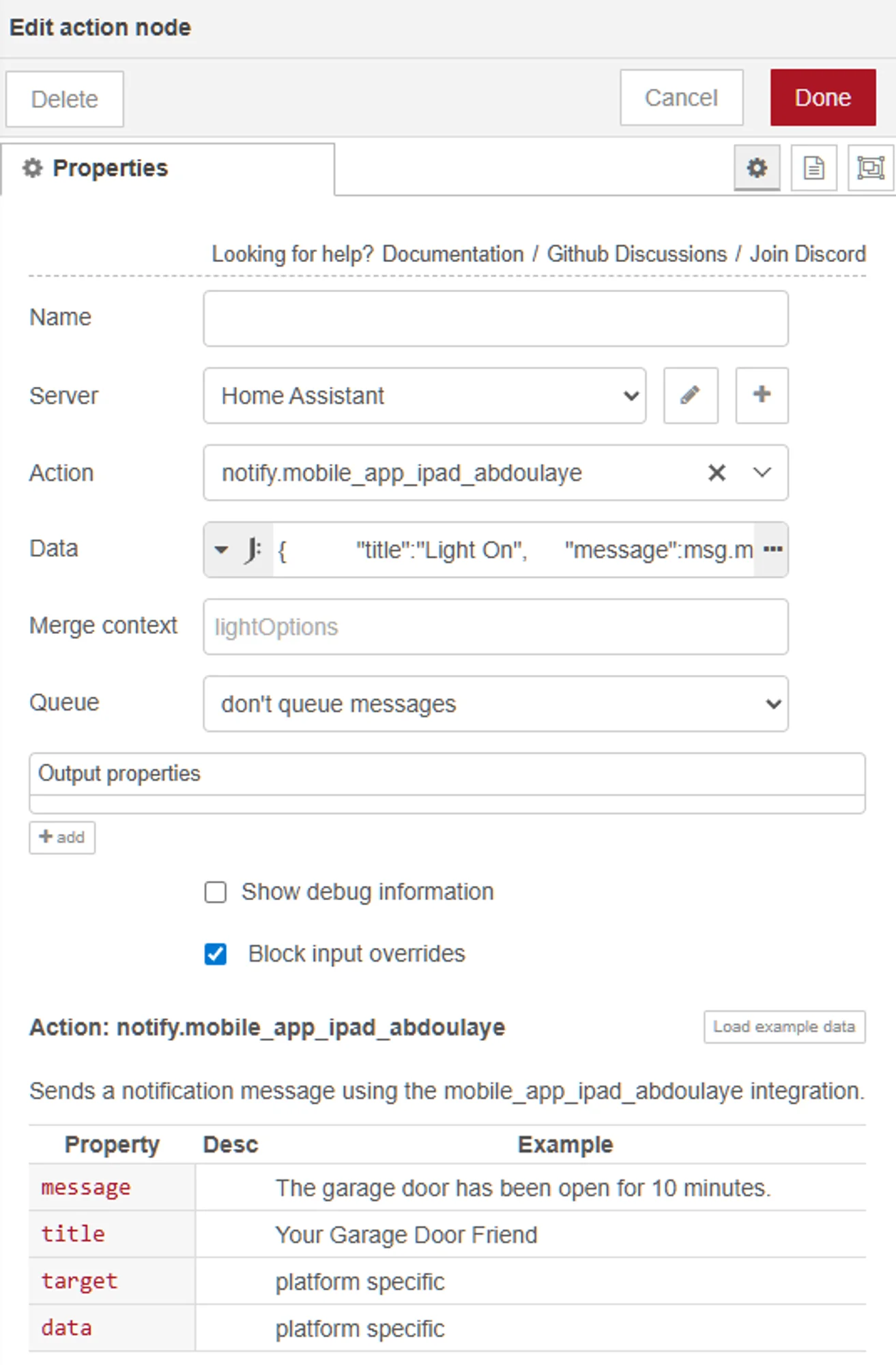

In the action node that sends the notification, we will have:
In the configuration, make sure to select the notification action. For actions, we will see in the next section how to create a notification with predefined actions.
How to create a notification with actions?

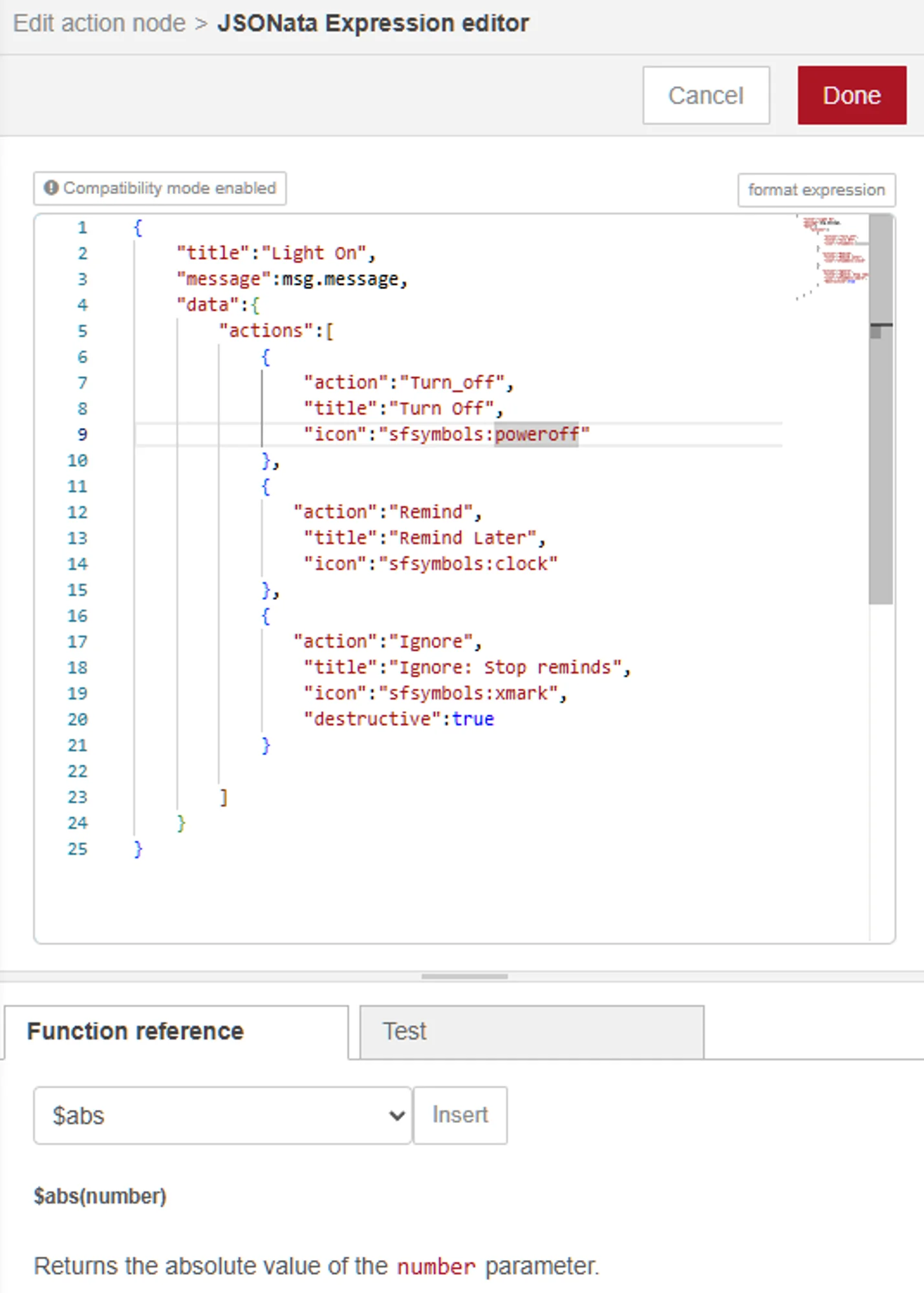

In the notification we generate, we will include actions such as “Turn off the light”, “Ignore”, and “Remind later”. To do this, add the following code in the “Data” section of the action node:
The “title” field is the notification title. The message will contain msg.message. The “actions” parameter groups all available actions. The “action” field will be used as an identifier later.
Once this block is configured, we can move on to handling the actions.

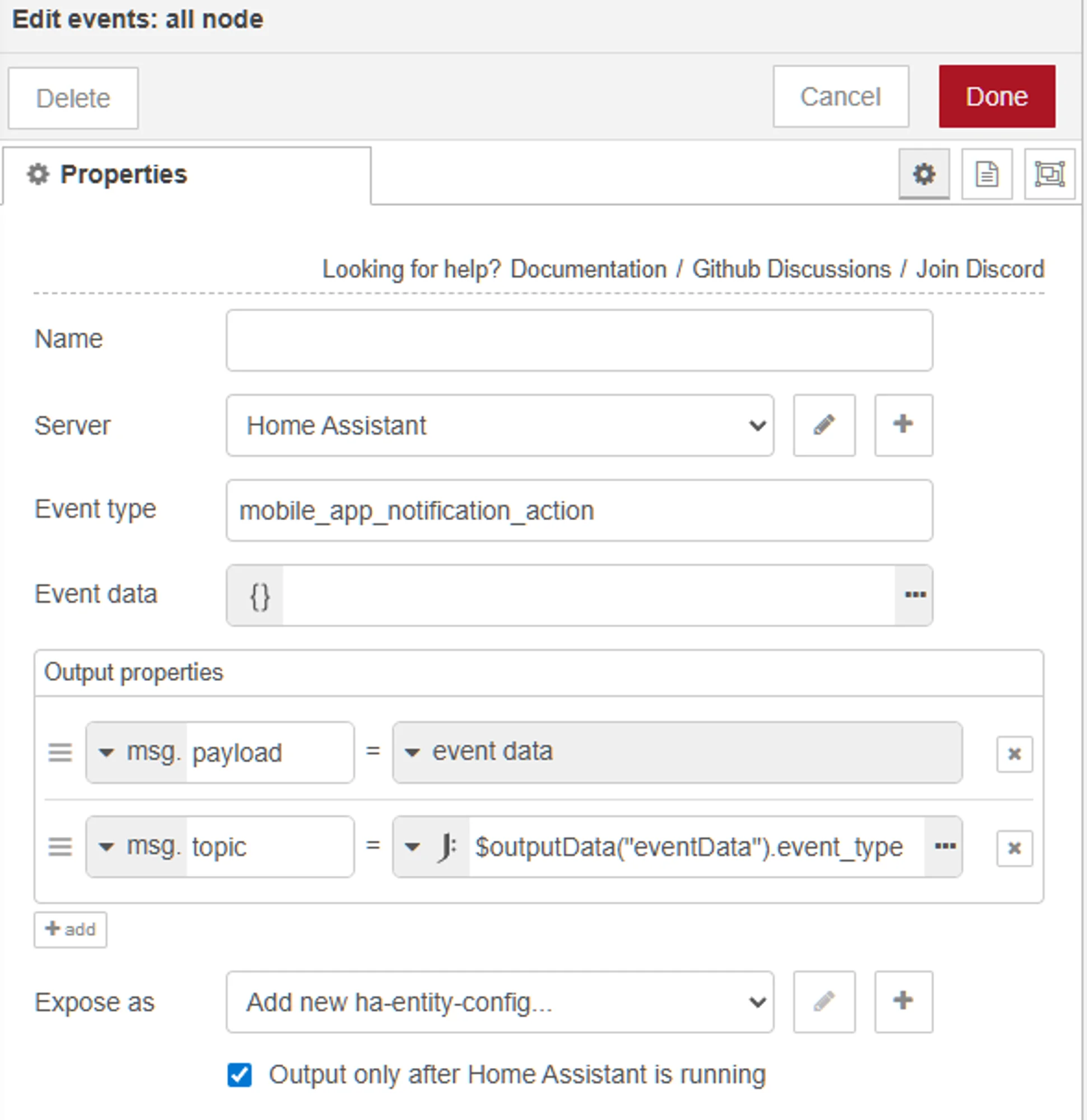

To handle actions, we retrieve them in the “event” node, which is configured as shown below:

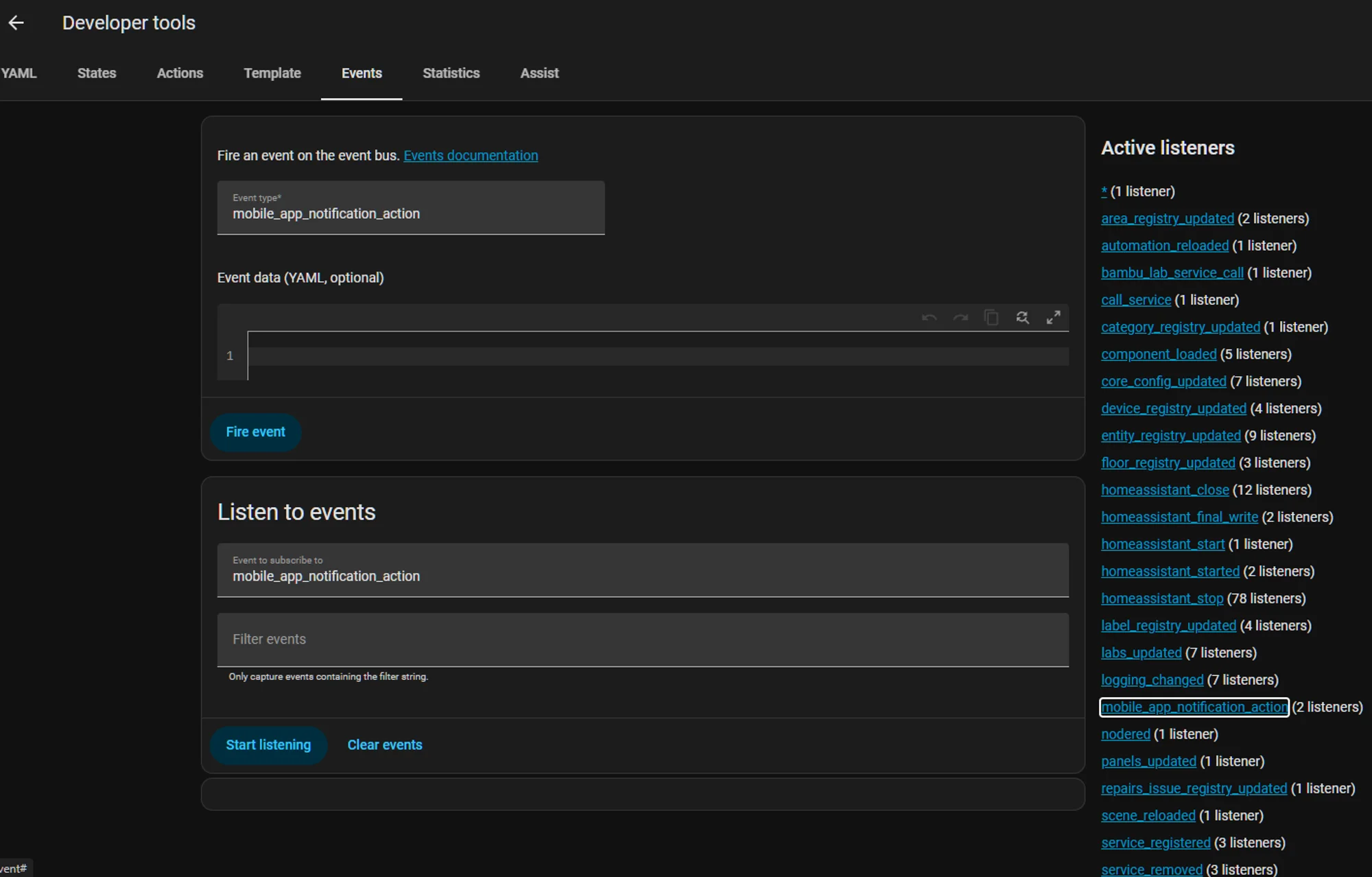

The only field to fill in is the event type. To find it, go to “Developer Tools”, then “Events”:
On the right, you will see the list of all events, and you just need to select the correct one for this tutorial.

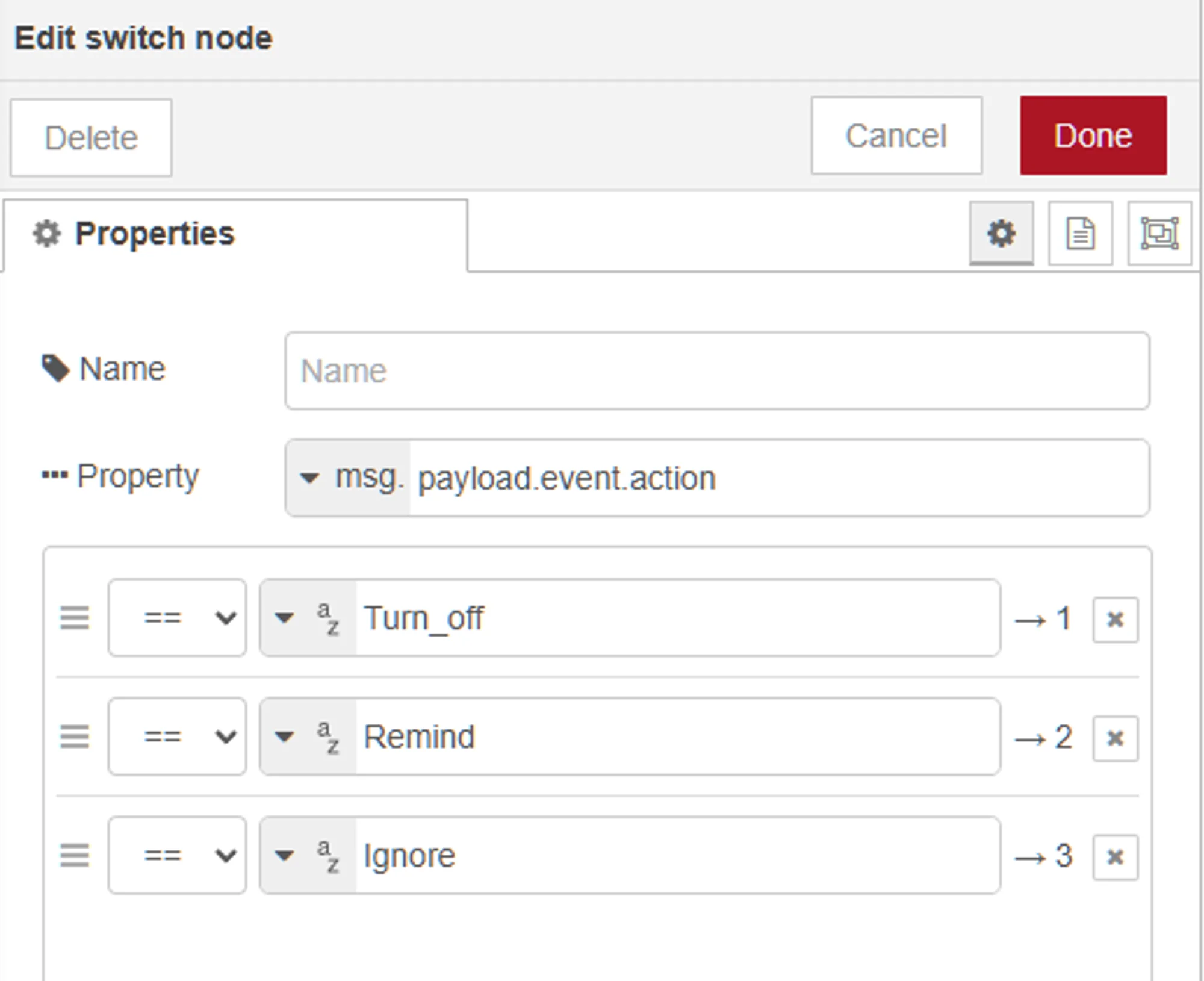

To process each notification action, we use a switch node configured as shown below:
For the property, select “event.action”, which corresponds to the received actions. Then, for each case, enter the correct name of the actions you previously defined.
So, when the action is “turn off the light”, we trigger the node to turn off the light and also reset the trigger to stop further notifications. For the “remind later” action, we do nothing so that the notification continues every 15 minutes. Finally, for the “ignore” action, we simply reset the trigger to stop notifications.
Conclusion
With this automation, you have a cool and practical way to track your shower duration and get notified if you forget to turn off the light, with the ability to turn it off directly from the notification.
If you do not want to build the automation yourself, you can download the file to import into Node-Red. Make sure to adjust the configuration to match your setup.
